MINIRICAMBI
Componenti e disponibilità
| RICAMBI NON PIU' DISPONIBILI | |||||
| TAVOLA | N | DESCRIZIONE | CODICE FORNITORE |
QTA' | NOTE |

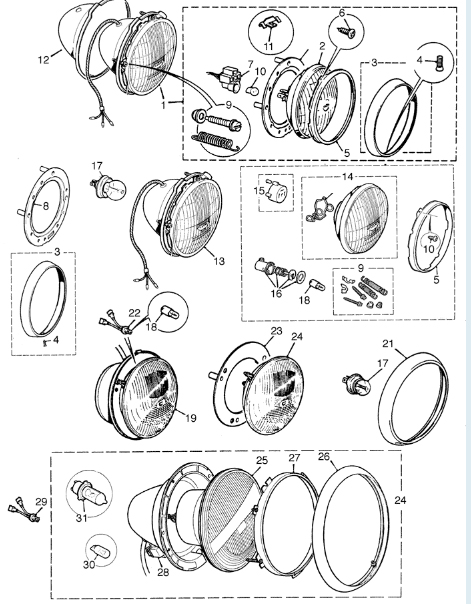

| LUCI ANTERIORI | 24 | Headlamp self levelling assembly less outer rim RHD | XBC105220 MINI SPARES |
2 | LUCAS |

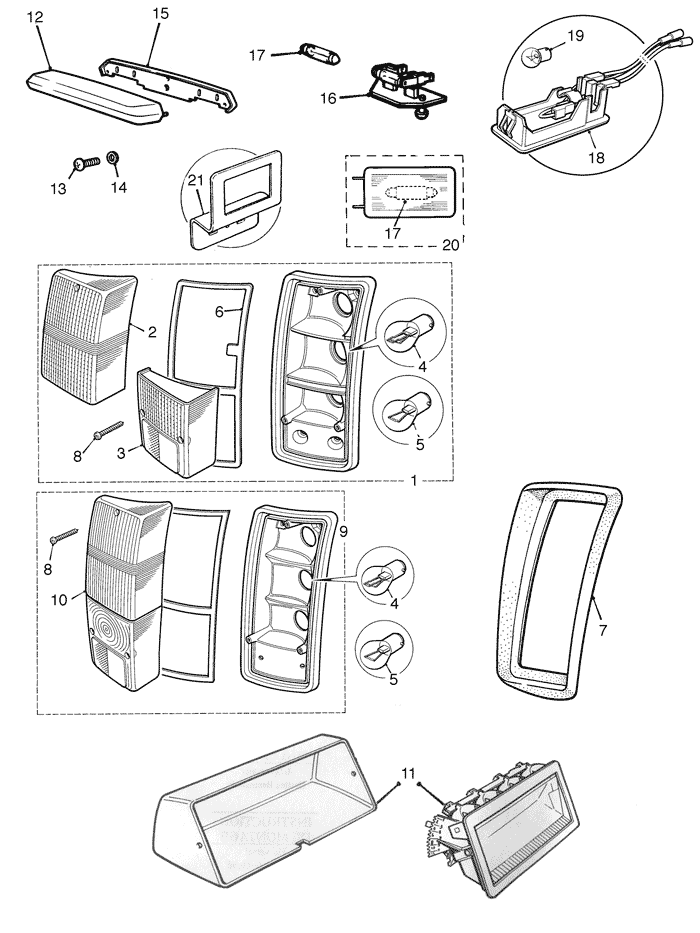

| LUCI POSTERIORI | 2 | Lens R/H upper, red and orange stop, tail & indicator | XFJ10026 MINI SPARES |
1 | CARELLO |
| 2 | Lens L/H upper, red and orange stop, tail & indicator | XFJ10027 MINI SPARES |
2 | LUCAS | |
| 3 | REVERSE LENS R/H. LUCAS & CARRELLO | XFJ10028 MINI SPARES |
1 | - | |
| 4 | STOP/TAIL LIGHT BULB (Clear) | GLB380 MINI SPARES |
1 | - | |
| 6 | REAR LENS TO LAMP BODY SEAL FOR ALL MK4 ON | XFH100460 MINI SPARES |
1 | - | |
| INDICATORI ANTERIORI | 13 | BULB H4 60/55WATT (LUCAS) | 084.110 ANGLO PARTS |
1 | - |
| 26 | HEADLAMP RIM MINISPARES OWN STAINLESS STEEL TYPE | 500929MS MINI SPARES |
3 | 1 usato, 2 nuovi | |
| 29 | SPIRE NUT N°6 SMALL | 161.315 ANGLO PARTS |
1 kit | NO OK per MPI | |
| 30 | 6x1/2"PAN POZI SCREW | 162.588 ANGLO PARTS |
1 kit | NO OK per MPI | |
| 30 | MPI FRONT LAMP 1.5" LONG | XYP100310 MINI SPARES |
2 | - | |
| 40 | Indicator lamp with white lens For MPI only | XBD100670 MINI SPARES |
2 | - | |
| 40 | AMBER FLASHER LENS | 084.215 ANGLO PARTS |
2 | NO OK per MPI | |
| 41 | BULB 12V 21W (LUCAS) | 084.062 ANGLO PARTS |
2 | - | |
| 41 | BULB 12V 21W AMBER (LUCAS) | 086.382 ANGLO PARTS |
1 | - | |
| BRACCI SOSPENSIONI ANTERIORI | 4 | BALL JOINT KIT.MINI-GENUINE MINI SPARES PART | GSJ166MS MINI SPARES |
2 | - |
| COMPONENTI SOSPENSIONI ANTERIORI | 15 | SUSPENSION ALLOY TRUMPET FRONT | 21A530 MINI SPARES |
2 | Usati |
| COMPONENTI SOSPENSIONI POSTERIORI | 12 | SUSPENSION REAR ALLOY STRUT except 13"wheel | 21A1684 MINI SPARES |
2 | Usati |

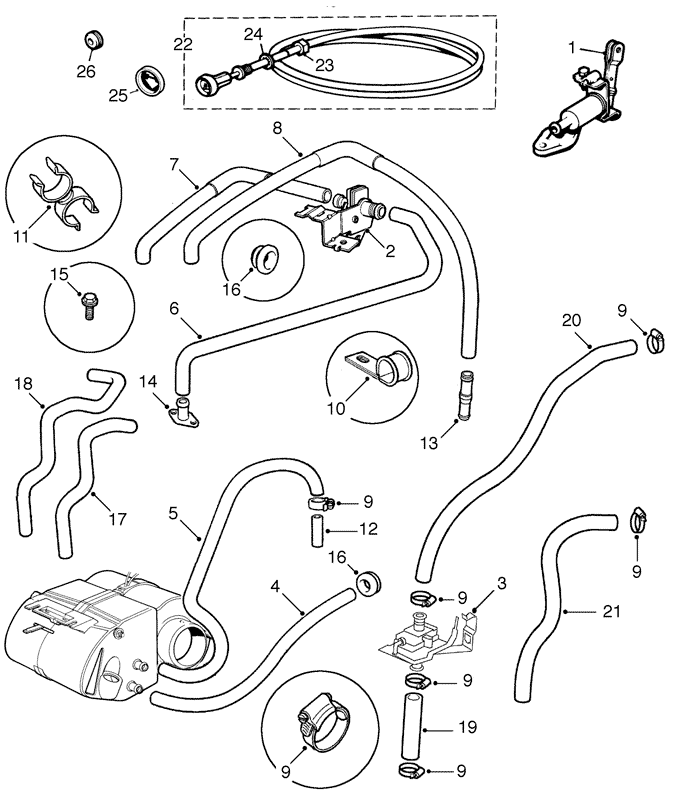

| RISCALDAMENTO | 3 | HEATER VALVE TWIN POINT ONLY FITTED ON SIDE OF HEATER UNIT | JJB100260 MINI SPARES |
2 | 1 usato |

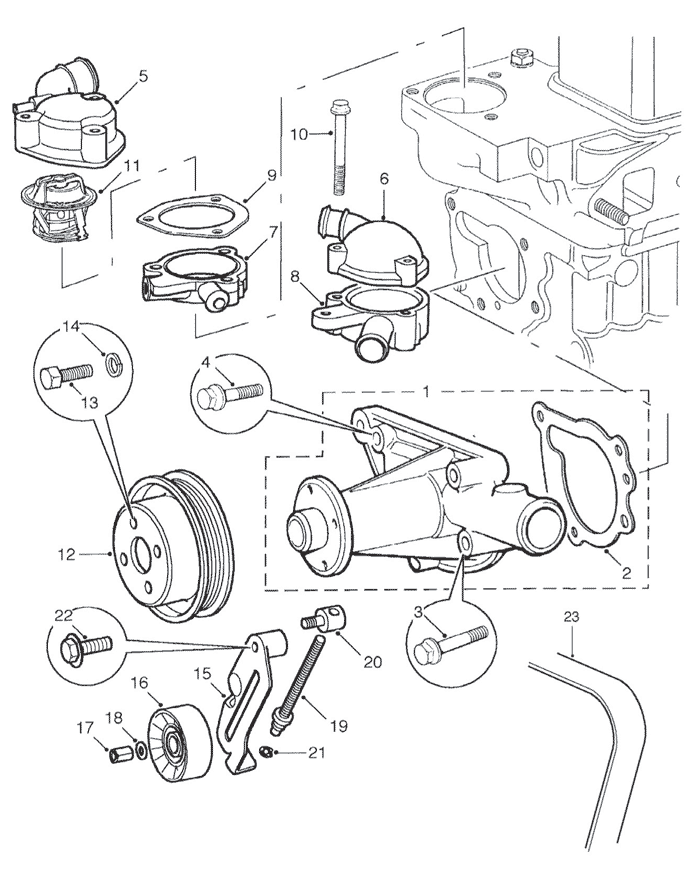

| POMPA ACQUA | 11 | 88° THERMOSTAT | GTS106 MINI SPARES |
1 | - |
| SUPPORTI MOTORE | 3 | Engine mounting | 011.475 ANGLO PARTS |
2 | - |
| 17 | RUBBER BUSH, STEADY / MINI | 011.485 ANGLO PARTS |
16 | - | |
| 17 | STABILISER BUSH POLYURETHANE ENGINE KIT | C-STR630 MINI SPARES |
1 kit | - | |
| 18 | STABILISER BUSH ONE PIECE PERFORMANCE USE STD FROM 1996 | KKF101320EVO MINI SPARES |
2 | - | |
| SEDILI | 8 | SEAT BASE DIAPHRAM 1993-2000 | HGD100150 MINI SPARES |
1 | - |

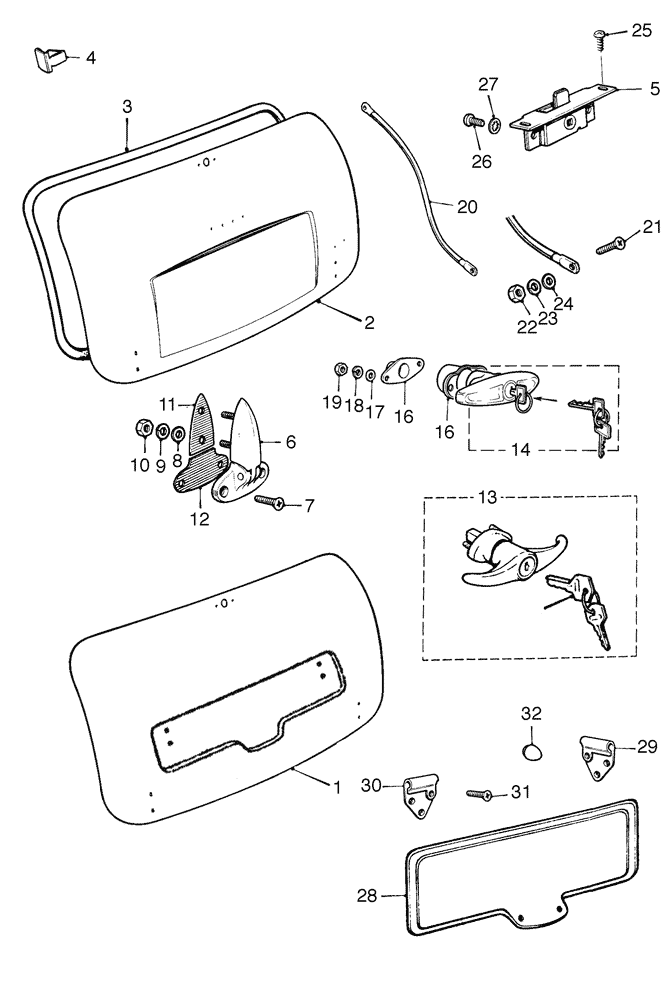

| BAULE | 3 | SEAL, BOOT APERTURE | 121.318 ANGLO PARTS |
1 | - |
| 20 | BOOT LID CABLE (SINGLE) | 14A6740 MINI SPARES |
1 | - | |

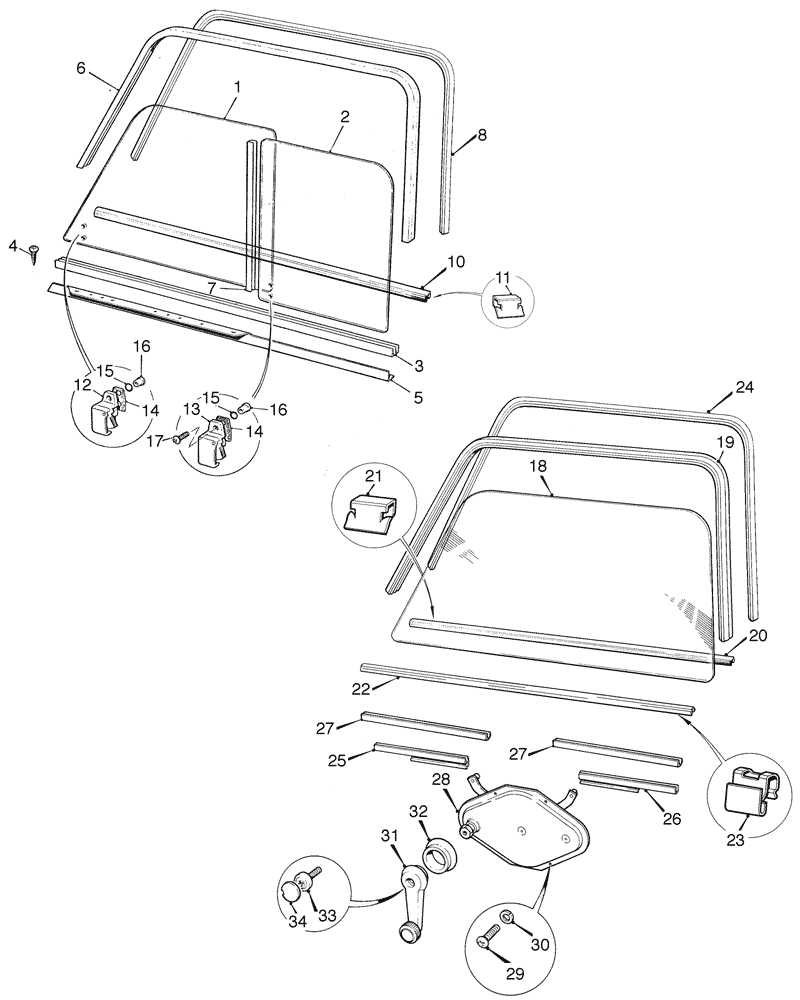

| VETRI SPORTELLI | 25 | DOOR GLASS RAIL SUPPORT O/S/F & N/S/R | ALA5746 MINI SPARES |
1 | - |
| 26 | DOOR GLASS RAIL SUPPORT N/S/F & O/S/R | ALA5747 MINI SPARES |
2 | - | |
| 31 | Window winder handle, spring loaded knob 1985 on | YXX3199PA MINI SPARES |
2 | - | |
| TERGICRISTALLI | 27 | WIPER CHROME WHEELBOX KIT 8 SIDED NUT. PAIR | 37H7201C MINI SPARES |
1 kit | - |
| 30 | WIPER HOLE PLUG IN STAINLESS STEEL - SINGLE | 8B12396 MINI SPARES |
1 | - | |
| 32/33 | WIPER ARM | - | 2 | Usati, neri | |
| 34 | WIPER BLADES | - | 2 | Usati, neri | |

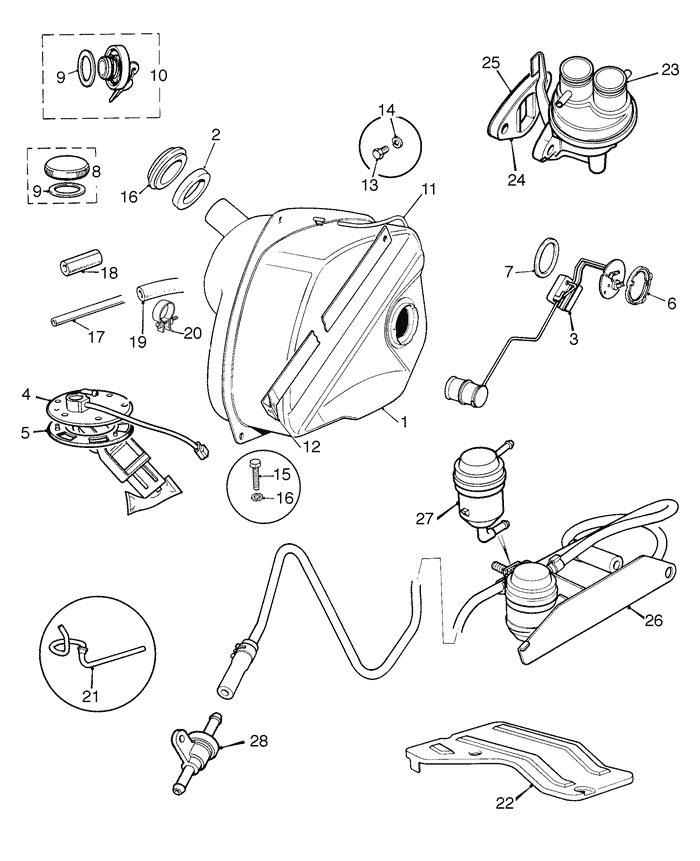

| SERBATOIO E POMPE | 10 | FILLER CAP LOCK / MGB, JAG E TYPE, MK2 | 101.596 ANGLO PARTS |
1 | Usato, 1 chiave |
| FRENO A MANO | 24+25 | LEVER | - | 1 | Usata |

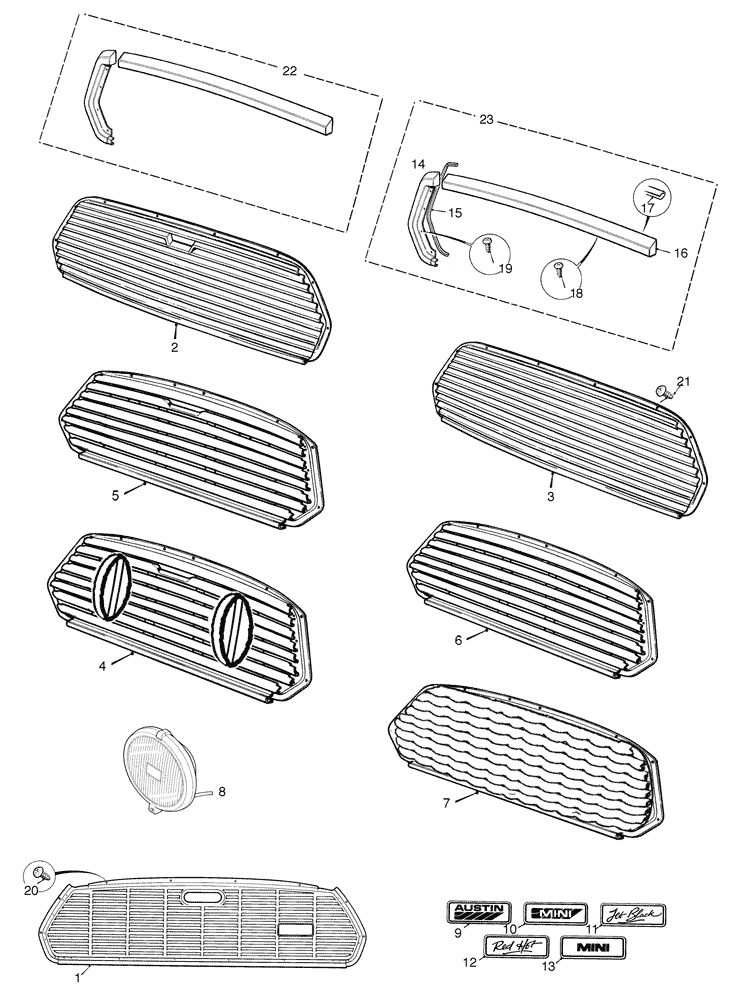

| GRIGLIA ANTERIORE | 3 | MK5 ALLOY GRILLE THIN SLAT WITH INTERNAL RELEASE | DHB102140MMM MINI SPARES |
2 | Usate |
| 14 | GRILLE SURROUND MOULDING L/H MK2 ON | ALA6509 MINI SPARES |
1 | Usata | |
| 15 | Seating for grille surround side pieces | 37H8108 MINI SPARES |
2 | - | |

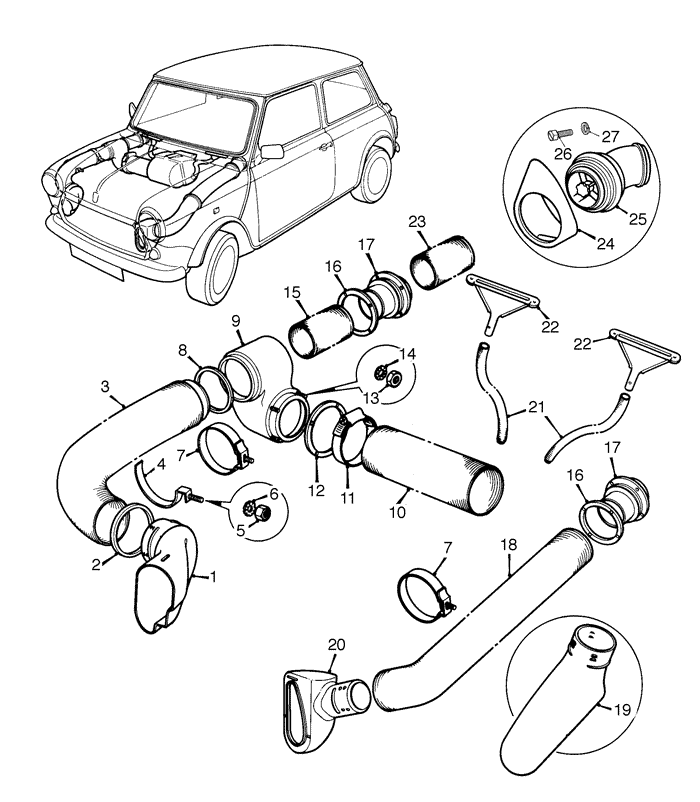

| TUBAZIONI VENTILAZIONE | 23 | Hose from connector to air vent on wooden dash | - | 2 | Usati |
| 25 | Air vent | - | 2 | Usati | |
| PORTIERE | 21 | Door opening handle 1996 on, MPI | FVC102060PMA MINI SPARES |
2 | Usati |
| 33 | Door pull, black plastic, fitted at angle - 1983 on | YXX451PA MINI SPARES |
2 | Usati | |
| SPECCHIETTI | 1 | Small door mirrors L+R | - | 1 coppia | Usati, verdi |

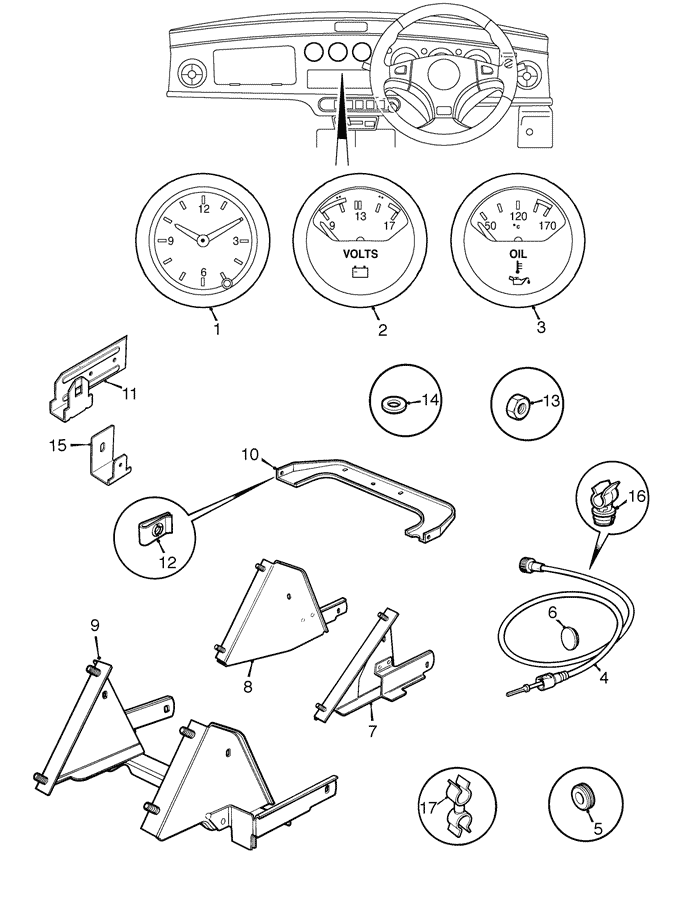

| STRUMENTI | 1 | Clock analogue type, ivory face, MPI | YFB100370 MINI SPARES |
1 | Usato |
| VOLANTE | 17 | IGNITION STEERING LOCK TWIN POINT MPi CARS 1996 ON | QRF100750 MINI SPARES |
1 | Usato con chiave bloccata all'interno |
| 40 | Steering wheel, black and nickel silver when air bag fitted | QTB101020WNP MINI SPARES |
1 | Usato | |
| - | I LOWERING KIT STEERING COLUMN | 185.275 ANGLO PARTS |
1 | NO OK per MPI | |
| DIFFERENZIALE | 18 | OIL SEAL OUTPUTSHAFT | 032.469 ANGLO PARTS |
2 | - |
| TELAIETTI | 25 | MOUNTING, REAR-FRONT SUBFRAME / MINI 76- | 041.463 ANGLO PARTS |
2 | - |
| ALIMENTAZIONE MOTORE | 2 | THROTTLE POTENTIOMETER MPI | XPOT403 AUTO-DOC |
1 | Funzionante, sostituito in vettura da analogo ricambio |
| 40 | AIR FILTER / MINI TBI | 101.409 ANGLO PARTS |
1 | - | |
| VARIE | - | ROOF AERIAL MPI 96 on | XUJ100070 MINI SPARES |
1 | - |
| - | DOOR BOTTOM INNER REPAIR SECTION L/H MK3 SALOON ON | MS34L MINI SPARES |
1 | - | |
| - | DOOR BOTTOM INNER REPAIR SECTION R/H MK3 SALOON ON | MS34R MINI SPARES |
1 | - | |
